Introduction

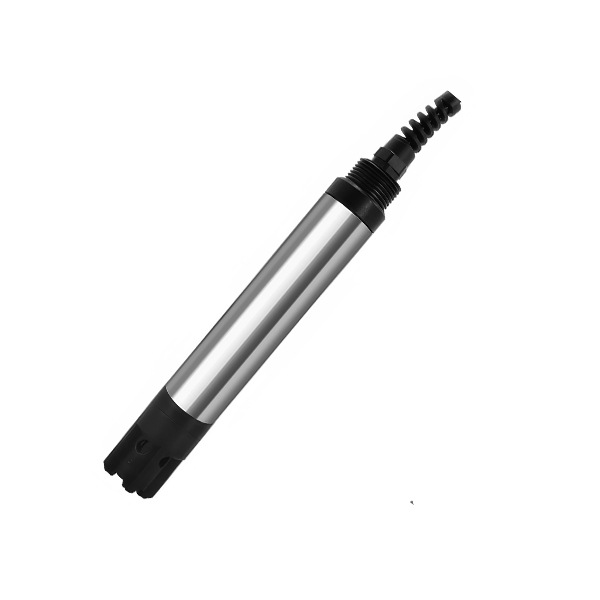

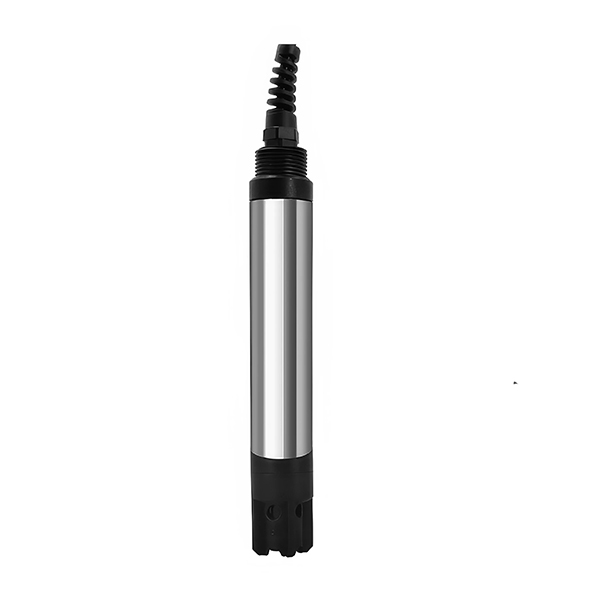

ACS13 digital graphite conductivity sensor independently developed and produced by ARTang Instrument.it's with standard RS485 Modbus, The housing of conductivity sensor is SS316 and measurement electrode is graphite for harsh application, easy to install, and it has high measurement accuracy, sensitive response, and can work stably for a long time. Built-in temperature probe, instant temperature compensation. Strong anti-interference ability, the longest output cable can reach 500 meters. It can be set and calibrated remotely, and the operation is simple. It can be widely used in monitoring the conductivity of thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food, fermentation, brewing and tap water and other waste water application.
|
Specification
| Product | Industrial Conductivity Sensor |
| Model | ACS13 |
| Conductivity Range | 0~20000us/cm (20ms/cm) |
| Measurement Range | 0~5000us/cm |
| Temperature Range | 0~65℃ |
| Power | 9~36V DC |
| Resolution | Conductivity resolution: 1uS/cm |
| Temperature resolution: 0.1°C |
| TDS resolution: 1 ppm |
| Pressure resistance | 0.6MPa |
| Shell material | stainless steel 316L |
| Communication | RS485 Modbus |
| Protection class | IP68 |
