Aitex E Steam Flange Type Vortex Street Flow Meter


  • Pipe diameter: DN15-DN300
  • Accuracy: 1.0% 1.5%
  • Range Ratio: 1:8
  • Output signal:Pulse,frequency,4-20mA,RS485 Modbus,HART
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

|

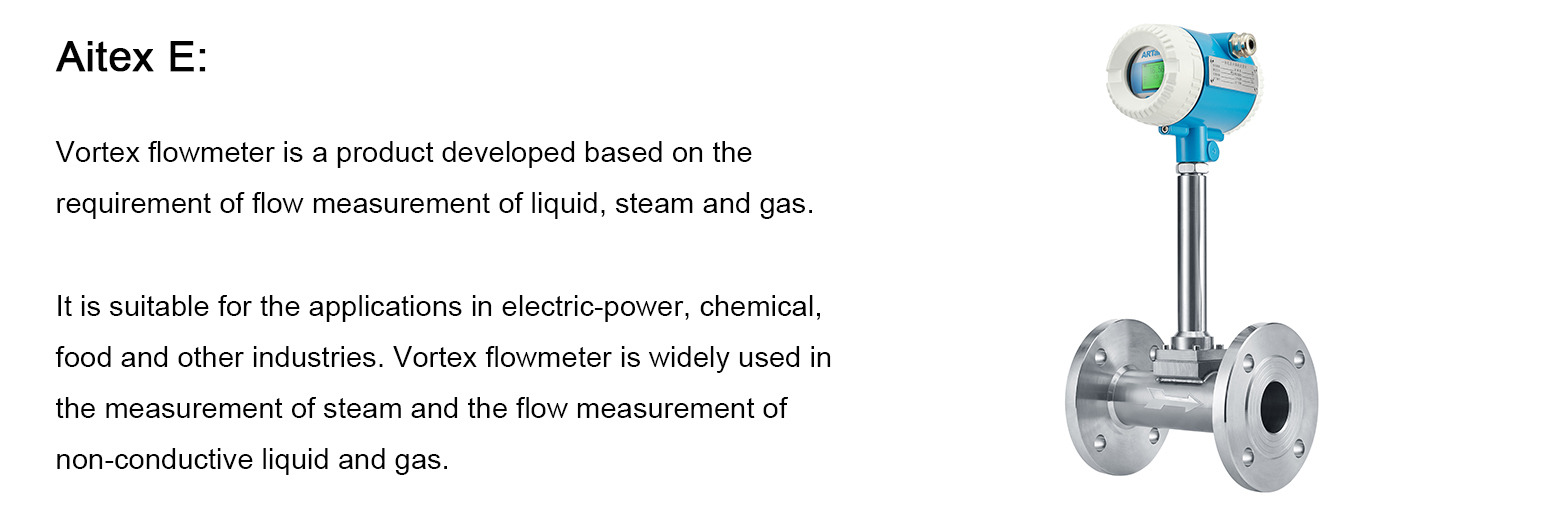

 Introduction

ARTang vortex flowmeters are widely used in the measurement of steam, compressed air, nitrogen and other gases. The Vortex flowmeter is ideal for measuring liquids, gases, and steam with high accuracy, thanks to its unique design that utilizes vortex shedding to measure flow rate. It can be used in a variety of industries, including oil and gas, chemical, and water treatment.

ARTang vortex flowmeters combines the features of the Vortex and Steam flowmeters, making it an ideal solution for measuring the flow rate of steam in various industries. Its advanced design ensures accurate measurement even under extreme conditions, and its easy installation and maintenance make it a cost-effective choice for steam flow measurement.

|

 Comment & FAQ

Model Number

 Aitex E
 Diameter nominal DN15~DN300
Process Temperature -40℃~ 260℃

Accuracy		 Gas without compensation: DN15-DN25--1.5%, DN32-DN200--1.0%, DN250-DN300--1.5%
 Liquid without compensation: DN15-DN300-- 1.0%
Temperature and pressure compensation: DN25-DN300-- 1.5%
Process Connection

Flange: GB, ANSI, DIN, JIS
Output Signal

4~20mA  Frequency/Pulse/Switch Output
Communication HART, Modbus RS485, PROFIBUS DP
Current Input

4~20mA
Power supply 24VDC±5%  Li battery(3.6VDC)
Protection Grade IP66/ IP67

|

 Key Features of Vortex Flowmeters

  • No moving parts, no abrasion, non-wearing parts inside, fully welded SS304 body (SS316 selectable);

  • Wide temperature range: –40°C to +350 °C (+250 °C Standard);

  • Output signal: 4-20mA, Pulse, HART/Modbus RS485 RTU selectable;

  • Standard max Pressure 1.6 MPa, 230 PSIG. (Custom up to 4.0 MPa 580 PSIG) ;

  • Robust and universally applicable for liquids, gases and steam,optimized for steam applications.

|

 Applications of Vortex Flowmeters

Vortex Flowmeters
Vortex Flow Measurement of Gases
Vortex Flowmeters
